Product details:

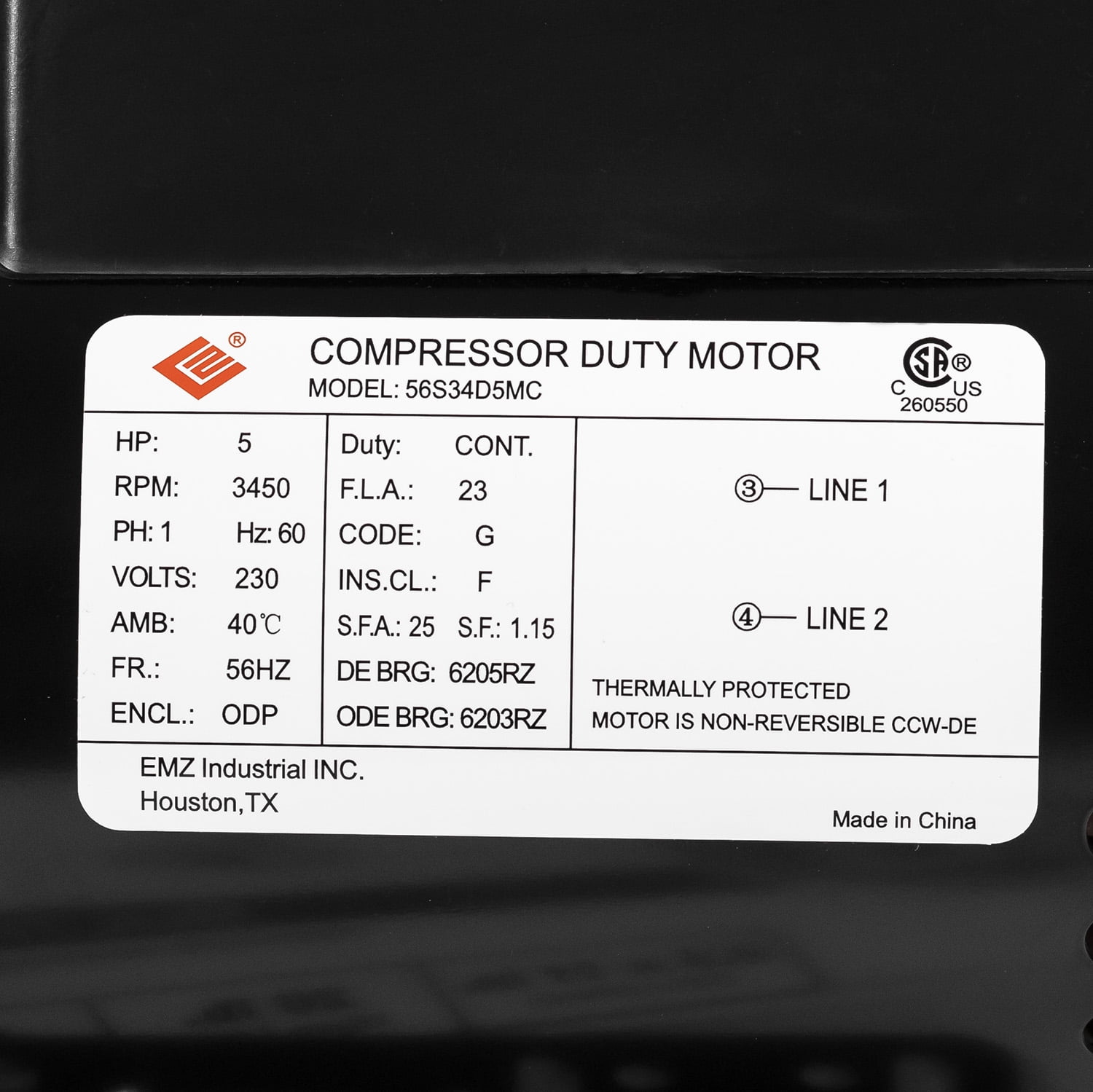

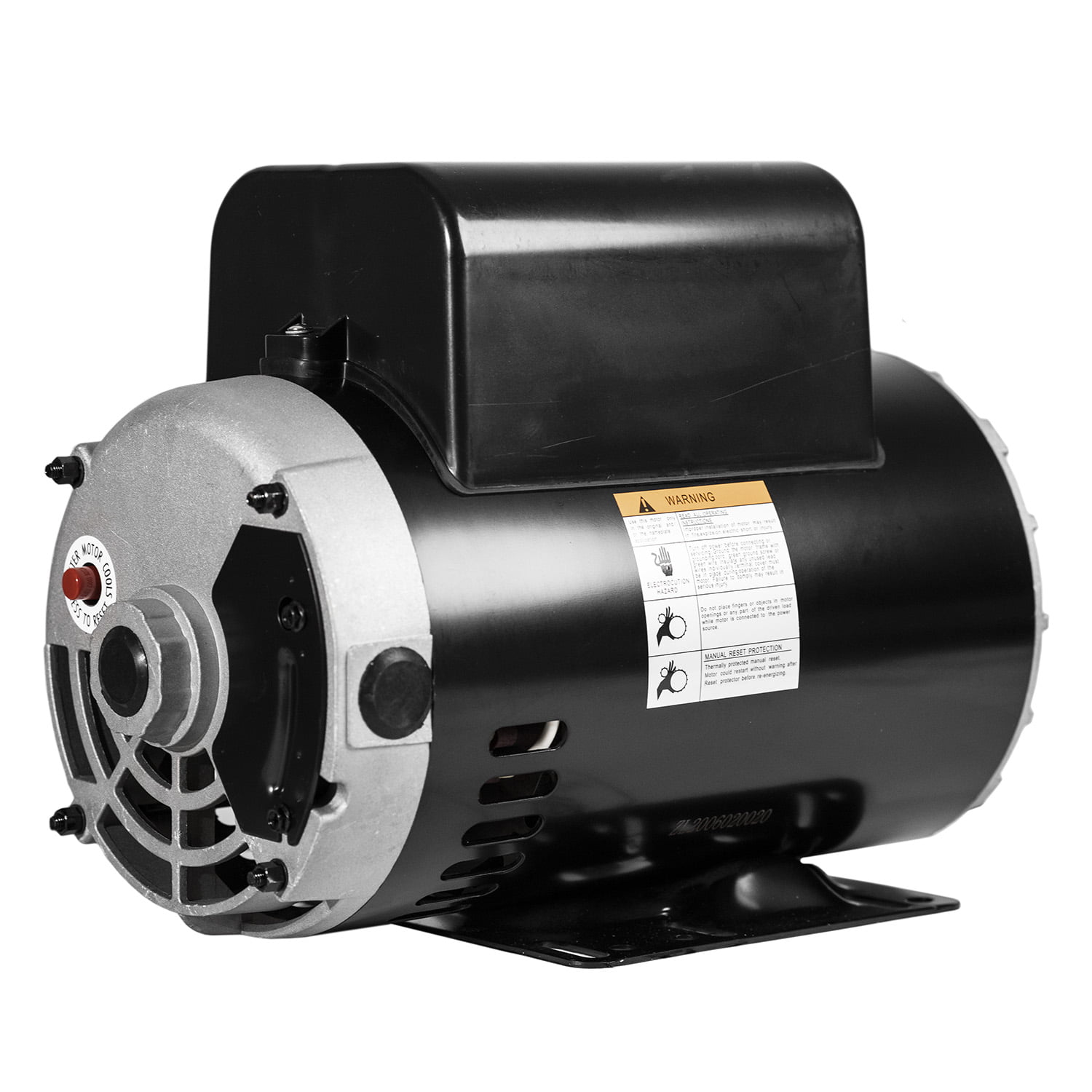

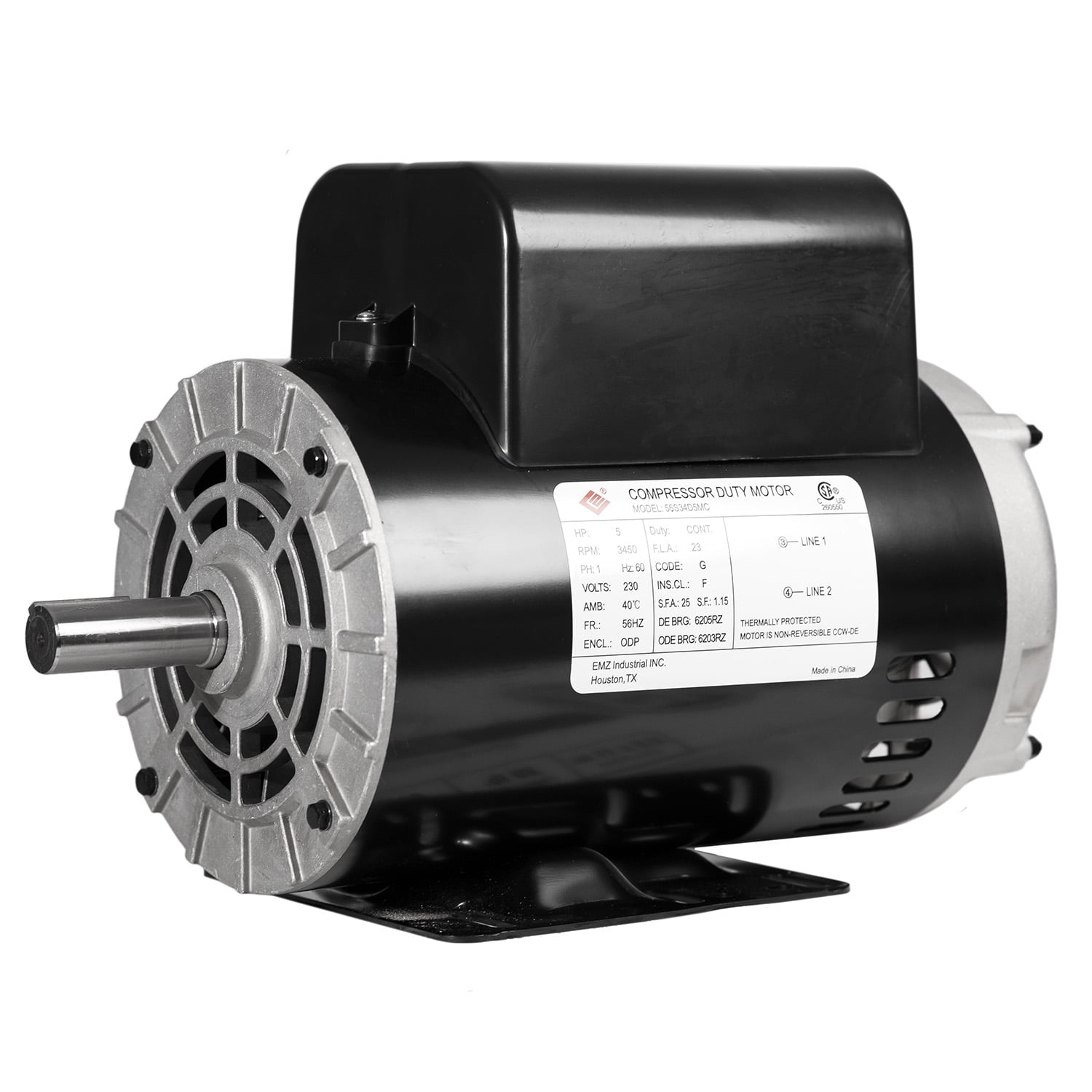

5 HP Compressor Duty Electric Motor with 7/8" Shaft Brand new 5 HP 230 volt compressor duty electric motor. This motor features a 56HZ frame with a 7/8" diameter shaft and rotates at 3450 RPM. This is a non-reversible motor that spins counter-clockwise (CCW) rotation when you are facing the shaft. This is a high-quality motor designed to handle and withstand the startup load of a compressor pump but will also work with many other applications. A wiring diagram is listed on the side of the motor for reference during installation. Please see below for more features and specifications. Specifications: Open Drip Proof Enclosure (ODP) Single Phase 5 HP 3450 RPM 60hz 230 Volts AMB 40 °C Frame: 56HZ Duty: Cont. Compressor Service Factor: 1.15 Full Load Amps: 23 INS.CL: F Non-reversible, CCW Rotation Facing Shaft Thermally Protected Overall Length W/O Shaft: 12" Overall Length With Shaft: 14.85" Overall Height: 10" Overall Width: 6.75" Shaft Diameter: 7/8" Shaft Length: 2-3/8" Standard Size Keyway: 3/16"
Brand:EMZ
Assembled Product Weight:49.4 lb
Manufacturer Part Number:EM-05A
Assembled Product Dimensions (L x W x H):14.85 x 6.75 x 10.00 Inches
